LITESTAR 4D - General Functions

New Road Plus Module

  • Road Plus, the new module for the automatic calculation of straight roads, is now available. It can be purchased from the e-commerce section of our Website

  Photoview - Photometric and Spectrometric Data Management

Spectrum

  • The function IES TM-30-15 IES Method for Evaluating Light Source Color Rendition is now available and incorporates the determination of parameters Rf (Fidelity) and Rg (Gamut) as well as the following graphs:
    • Color Evaluation Sample with a set of 99 samples and with 16 hue bins (Hue Fidelity Indices)
    • Color Distortion
    • Color Vector Graphic
    • Rf according to Rg
    • Chroma change in each of the bins as well as Hue change in each of the bins
  • Printouts according to IES TM-30-15 have been included
  • The S/P ratio has been added (scotopic/photopic ratio)


  Litecalc - Lighting Design and Planning

Wizard for Roads

  • Classes P, P☺ (P with smiley face when facial recognition is required), C and, HS have been added, as well as EV for carriageways

Advanced Projects for Roads

  • In addition to those classes already available in version 6.00 classes P, P☺ (P with smiley face when facial recognition is required), C and, HS have been added, as well as EV for carriageways. Classes C, HS and EV have been included for all other areas.
  • Automatic calculation and optimizer - Program
    • A button allowing to download the Excel file required for the automatic calculation from OxyTech Website has been added
    • The functions for opening the Input Excel file, for expanding the Input Excel file according to the multiple configurations defined by the user and for launching the calculation have been included. These functions have been added to the previous function which integrated the 3 operations

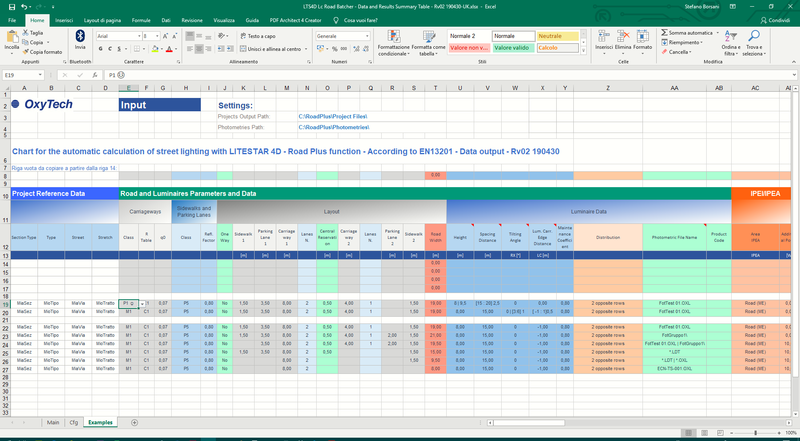

  • Automatic calculation and optimizer – Excel File
    • In addition to classes already available in version 6.00 all those classes listed in EN 13201-2:2015 such as classes P, P☺ (P with smiley face when facial recognition is required), C and, HS have been added, as well as EV for carriageways. Classes C, HS and EV have been included for all other areas
    • Classes P, P☺ (P with smiley face when facial recognition is required) have been added
    • It is now possible to define more than one sub-folder from which the program takes photometries
    • It is now possible to define more than one folder in which to save projects
    • The AG column has been included in the Excel file where errors are recorded by the program (LOG)
    • The columns where the results regarding the HS and EV classes for carriageways are displayed have been added in the Output section of the Excel file

Download the Excel file

Nota Bene: the Excel files of version 6.00 are not compatible with those of version 6.01


  Watch the film showing the new features and enhancements:



  Look at the introduction:
